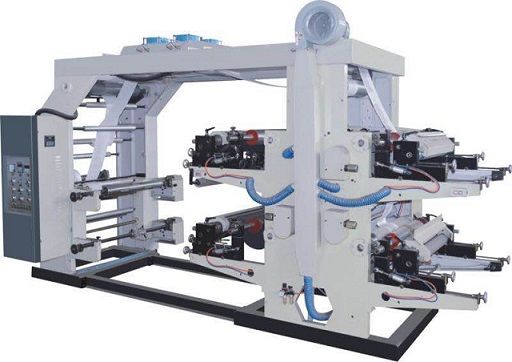

Economical 4 Colors Flexo Printing Machine


Application:

Introduce sensitization resin as flexible printing plate, suitable for printing such packing materials as polyethylene, polypropylene bag, cellophane and roll paper, etc. It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc



Performance and Features:
1. Easy operation, flexible starting, accurate color register.
2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
3. Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
4. The printing ink is spread by the anilox cylinder with even ink color.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6. 360 continuous and adjustable longitudinal register device.
7. The frequency control of motor speed adapts to different printing speeds.
8. There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.



Application:

Introduce sensitization resin as flexible printing plate, suitable for printing such packing materials as polyethylene, polypropylene bag, cellophane and roll paper, etc. It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.

Model of Machine

YT-4600

YT-4800

YT-41000

Max. Width of Printing Material

600mm

800mm

1000mm

Max. Printing With

560mm

760mm

960mm

Length Range of Printed Product

191-914mm

191-914mm

191-914mm

Max. Diameter of Roll Material

φ450mm

φ450mm

φ450mm

Printing Speed

5~50m/min

5~50m/min

5~50m/min

Thickness of plate

2.38mm

2.38mm

2.38mm

Total Power

10.87kw

12.5kw

14.37kw

Weight of Machine

3000kg

3500kg

4000kg

Overall Dimensions

4200×1600×2400mm

4200×1800×2400mm

4200×2000×2400mm
