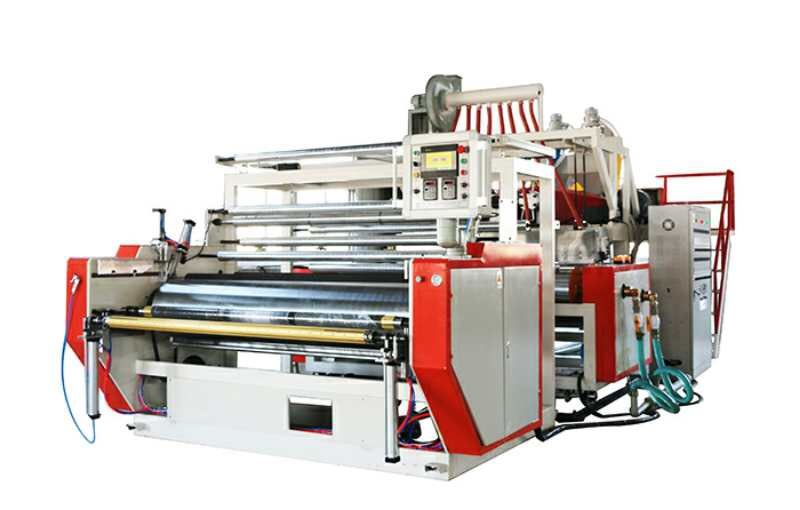

Single Layer LLDPE Stretch Film Machine
Time:2021/04/27

缠绕膜机.jpgProduct Description

The machine group is a cast stretch film machine group with high-plasticizing, easy operating, long-life ,energy saving and it's modified and designed on the years' experience on the cast equipment manufacturing and the production experience from the customers, combined with the advanced technology from oversea. The machine group is mainly for the production of LLDPE film, LDPE film, PE film, and CPE film etc. It adopts advanced intelligent industrial controlling system, with automatic hidden cutting saw, automatic cutting and roll change, auto paper core loading and unloading system(option upon request),which ensures the easy and safe operation, a tighter and more even roll winding. All the designs ensure the film quality, enhance the production efficiency, lower down production cost and create more value. The installation of swing system on the subsidiary machine can enhance the evenness and appearance of the film rolls which make the products more competitive.

Project/specification1000mm single layer
Screw diameter65
Length-diameter ratio28:1
The die head width1250mm
Finished product width1000mm
Finished product thickness0.015-0.04mm
Membrane layer structureA
The maximum output65kg/h
Mechanical speed10-100m/min
The total power50kw
Overall Dimensions (L*W*H)6m*2.0 m*2.5m
Weight(T)4.0T
