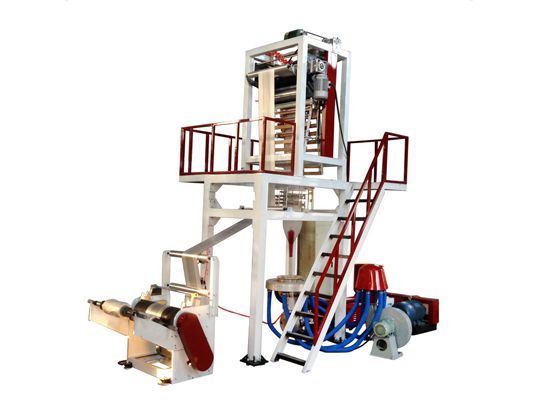

SJ Series HDPE Film Blown Machine
Time:2021/04/28


Product Usage:


The machine body is mode of square steel,with frequency converter controlled traction,friction single winder and elevator,which is suitable for blowing HDPE/LDPE industrial and agriculture film and  packing bags for foodstuff, clothing, rubbish bag,vest bags and etc.

Main Technical Parameters:

ModelHT-SJ50/FM600HT-SJ55/FM800HT-SJ60/FM1000HT-SJ65/FM1200HT-SJ75/FM1500
Screw diameter50mm55mm60mm65mm75mm
Screw ratio(L/D)30:130:130:130:130:1
Screw speed10-100r/min10-100r/min10-100r/min10-100r/min10-100r/min
Max.output30kg/hr40kg/hr60kg/hr70kg/hr90kg/hr
Film width600mm800mm1000mm1200mm1500mm
Single film thickness0.01-0.1mm0.01-0.1mm0.01-0.1mm0.01-0.1mm0.01-0.1mm
Main motor11kw15kw18.5kw22kw30kw
Total power22kw26kw30kw40kw50kw
Weight2600kg3000kg3600kg4200kg5000kg
Dimension4*1.8*4m4.2*2.0*4.2m4.6*2.8*4.5m4.8*3.0*5.6m4.8*3.0*5.6m
