Application:

This machine is suitable for slitting and rewinding such various
roll materials as BOPP, PET, CPP, CPE, PVC, aluminum foil and paper, etc. and
can cut edge, separate and cut material according to different requirements during production.


Performance and Features:

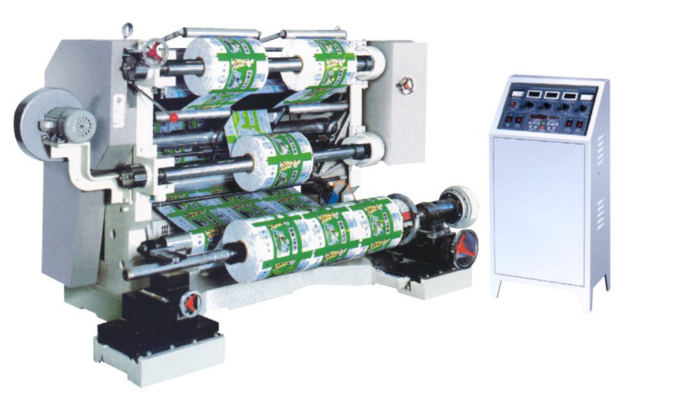

1. Laminated Film Slitting Machine is a kind of vertical slitting & rewinding machine
2. Independent master control panel, more flexible and even easier operation.
3. Automatic EPC for unwinding, photocell is suitable for tracking the edge and color of transparent material. 4. Air inflatable shaft for unwinding, automatic tension controller and magnetic powder brake for unwinding tension control
5. Double cam shaft for rewinding, Magnetic clutch control for rewinding tension control
6. Main motor with frequency converter for speed regulation
7. Equipped with rim charge conveying device
8. Automatic meter counting device



Type

FQ-L1100B

FQ-L1300B

Max. Width of Mother Roll

1100mm

1300m

MAX .Diameter of Mother Roll

600mm

600mm

Width of Final Roll

700mm

700mm

Rewinding diameter

450mm

450mm

Slitting width

30~1000mm

30~1200mm

Slitting and Rewinding Speed

5~180m/min

5~180m/min

Tolerance of EPC

<±0.5mm

<±0.5mm

Total Power

3.7Kw

3.7Kw

Weight of Machine

1600kg

1900kg

Overall Dimension

2500×1570×1530mm

2700×1570×1530mm
