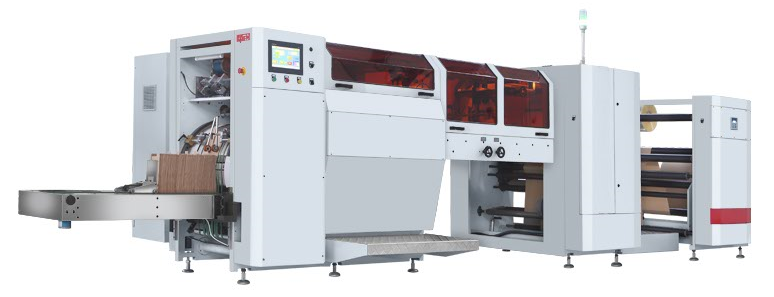

V type kraft paper bag making machine
Time:2021/04/27



Usage:
This machine is designed to manufacturer sharp bottom paper bag from paper roll,it is suitable for kraft paper, ribbed kraft paper, grease-proof paper, coated paper, medico paper & etc. By implementing steps including roll feeding, side gluing, perforating, tube forming, tube cutting off, bottom folding and gluing,finished bag collecting within a fully automatic process, can effectively save labor costs.It has advantage of easy operation, high efficiency, more steady, it is an ideal machine for make different kind of paper bag, snack paper bag, food paper bag, bread paper bag, dry fruit paper bag and eco-friendly paper bag.

Features:
1.Machine use French Schneider touch screen human-computer interface, operation and control easily.
2.Adopt UK TRIO PC micro-computer control system,integrated with optical fiber, ensure high speed running steadily. 3.Adopt Japanese Yaskawa Servo Control System and German SICK photocell for rectify, tracking printed bag accurately.
4.Raw material loading adopt pneumatic cylinder up and down structure, unwinding adopt automatic tension control. 5.Raw material unwinding EPC is from ZXTEC,China, reduce adjustment time.

ModelTN-250J
Machine Speed50-300 bags/min
Paper Thickness Range35-80 gsm
Bag Making Length140-450 mm
Bag Making Width80-230 mm
Gusset Size20-120 mm
Paper Roll Diameter200-1000 mm
Paper Roll Width100-700 mm
Power Supply380V (3 phase/50Hz)
Total Power15 kw
Machine Weight3000 kg
Overall Dimension (L*W*H)7600*1800*1700 mm
