Use

This machine is suitable for various materials roll to roll printing, like various paper, film(BOPP,PET,PE,OPP,PP,CPP), non woven fabric, pp woven sack,self-adhesive labels, paper cups, foils, etc.



Detailed Product Description

1. Low speed and full load startup; stable running by tension control when increasing and decreasing speed, noise is decreased

2. High dots presentation rate under high speed; clear and vivid stratification of screen printing; strong stereo effect and accurate registering

3. Aluminum roller adopts the Japan semi-sealing small bearing; flinty oxidation, static and dynamic balancing treatments are conducted; low resistance and small flop.

4. The special made modulus angular gears adopted printing size and full printing specifications (5mm is spec)

5. With the air exhaust, blowing and heating settings; the heating system adopts the central thermostatic control system and group management, also with the cold air forming devices

6. Printing rolls should keep moving while machine halted

7. Material holder use air shaft

8. Auto tension control

9. Unwind with auto deviation correction system (EPC)

10. EDGE position control



Model

GYT-2600

GYT-2800

GYT-21000

GYT-21200

Max. Roll Width

600mm

800mm

1000mm

1200mm

Max. Printing Width

560mm

760mm

960mm

1160mm

Printing Length

191-1016mm

200-1000mm

191-1016mm

191-1016mm

Printing Colors

2+0, 1+1

2+0, 1+1

2+0, 1+1

2+0, 1+1

Max. Mechanical Speed

80m/min

80m/min

80m/min

80m/min

Max. Printing Speed

70m/min

70m/min

70m/min

70m/min

Anilox Roller

Ceramic Roller

Ceramic Roller

Ceramic Roller

Ceramic Roller

Unwinding/Rewinding Diameter

Φ600mm

Φ600mm

Φ600mm

Φ600mm

Unwinding/Rewinding Shaft

3’’ air expanding shaft

3’’ air expanding shaft

3’’ air expanding shaft

3’’ air expanding shaft

Total Power

15kw

15kw

15kw

20kw

Weight

2200kg

About 2200kg

2200kg

3500kg

Dimension

1900m×1700×2500mm

1900m×1700×2500mm

1900m×1700×2500mm

2500m×2200×2000mm


    CONTACT US

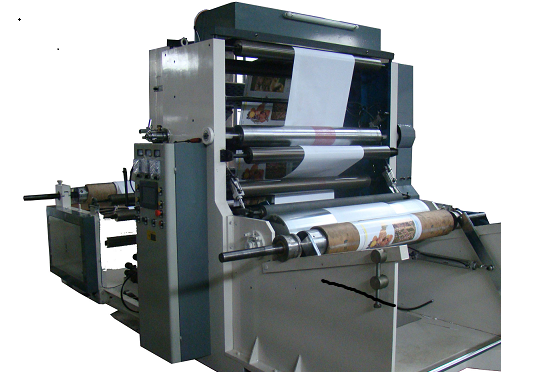

    GYT2colors High Speed Film Flexo Printing Machine
