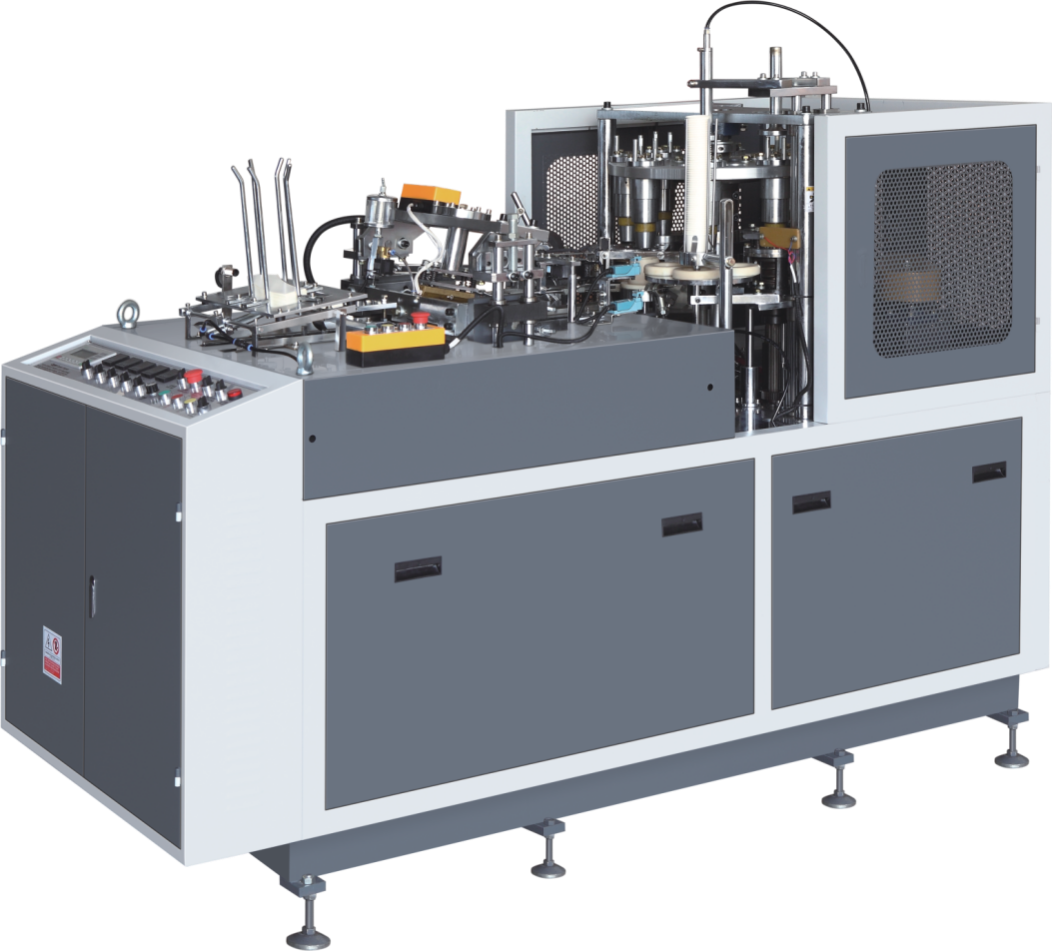

Economic type Paper Cup Forming Machine with 50-60pcs per min
1. Description:
ZBJ-Q12 is a new type cup forming machine is a fully automatic open cam cup forming equipment, which is devoloped by our company independly through comprehensive technical improvement to improve the stability of the whole machine.
2. Technical Parameter:
Model: ZBJ-Q12(Open cam Paper Cup Machine) | |
Paper Cup Size | 40ml~330ml |
| Top: 45~90 mm Bottom: 35~70mm Height: 40~115 mm |
Speed : | 50-60pcs/minute(Speed affected by cup size, paper quality&thickness) |
Raw Material : | 140~250gsm One side or Two side PE coated Paper |
Power Source : | 380V 3-Phase 50Hz (* if User power different? Please INFO US IN ADVANCE.) |
Total Power: | 7KW; |
Working Power | 3.5KW |
Total Weight: | GW/NW: 2600/2500KG |
Pack Size(L*W*H) | 2250*1340*1950mm |
Cup Side Welding | Pre-heating+Heater |
Cup Bottom Heating: Cup Bottom Knurling: | Heater; Heater |
We Reserve the right to alter specifications without prior notice. | |
3. Main Improvement:
# Speed 50~60 cup/minute
# Normal digital button control, easy operate,
# 3 sensors detect all steps, any fault auto stop,one cup fan cut one bottom disc, no wastage.
# Open Cam (8-divide) drive, compare with index gear box, easy maintenance, stable and reliable, easy replace broken parts.
# Quality Shaft &gears drive the movement, more stable than chain system,
# Only ONE main turntable, more efficient and reliable.
# Self lubricate (automatic oil lubricate),
# Quality bearing and electronic element, long life,
# Robot straight lift the cup body to main mold.
# Bottom disk straight punched and send to the cup body, less wastage and precision.
# Separately cam control the bottom movement, machine smooth and light,
# Advanced bottom knurling system, reliable and long life,
# Working power less, save cost,
# With cup collector/stacker, One worker run 2~3 sets cup machine, save labour,
# Optimize the movement design, frame, parts, machine more light pressure, long life time.
