Double Layer Co-extruding Film Blowing Machine
Time：2021/04/28

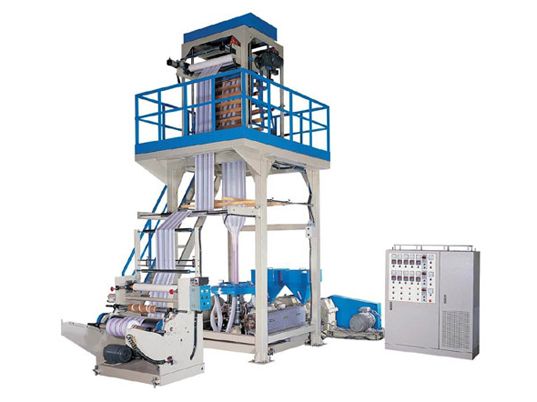

2 Layer HDPE/LDPE Plastic Film Blowing Machine

Use:

2 Layer HDPE Plastic Film Blowing Machine is used for blowing the plastic laminated film of low density polyethylene (LDPE), high density polythylene(HDPE)and linear low density polyethylene(LLDPE)etc, Which are widely used for packing liquid, printed base material, products for export and industrial products, etc.

Characteristics:

1. Double-layer co-extrusion laminated film can prolong the length for preservation of liquid package.

2. The cylinder and the screw stem of the extruder are made of high quality alloy steel with optimum hardness and durable service after precision finishing and nitrogen treatment.

3. The auxiliary machine has a platform working table for making operation easy and is equipped with bubble stabilizing ring.

4. Double-rolling and double-cutting coiling unit adopts torque motor to keep proper tensions and make rolling even and roll-changing easy.




Main Technical Parameters:

Model:

SJ 50*2

Screw Diameter

50mm x2

L/D ratio

28 : 1

Rational Speed of Screw

10-120rpm

Screw Barrel Material

38CRMOLA

Film Width

800mm

Thickness

0.015-0.05mm

Output

60kg/h

Main Motor Power

7.5kwx2

Heating Power

26kw

Overall dimension:

4200x3500 x5000mm

Total Weight

3500kg
