Automatic Environmental Paper Drinking Straw Making Machine
Time:2021/04/27

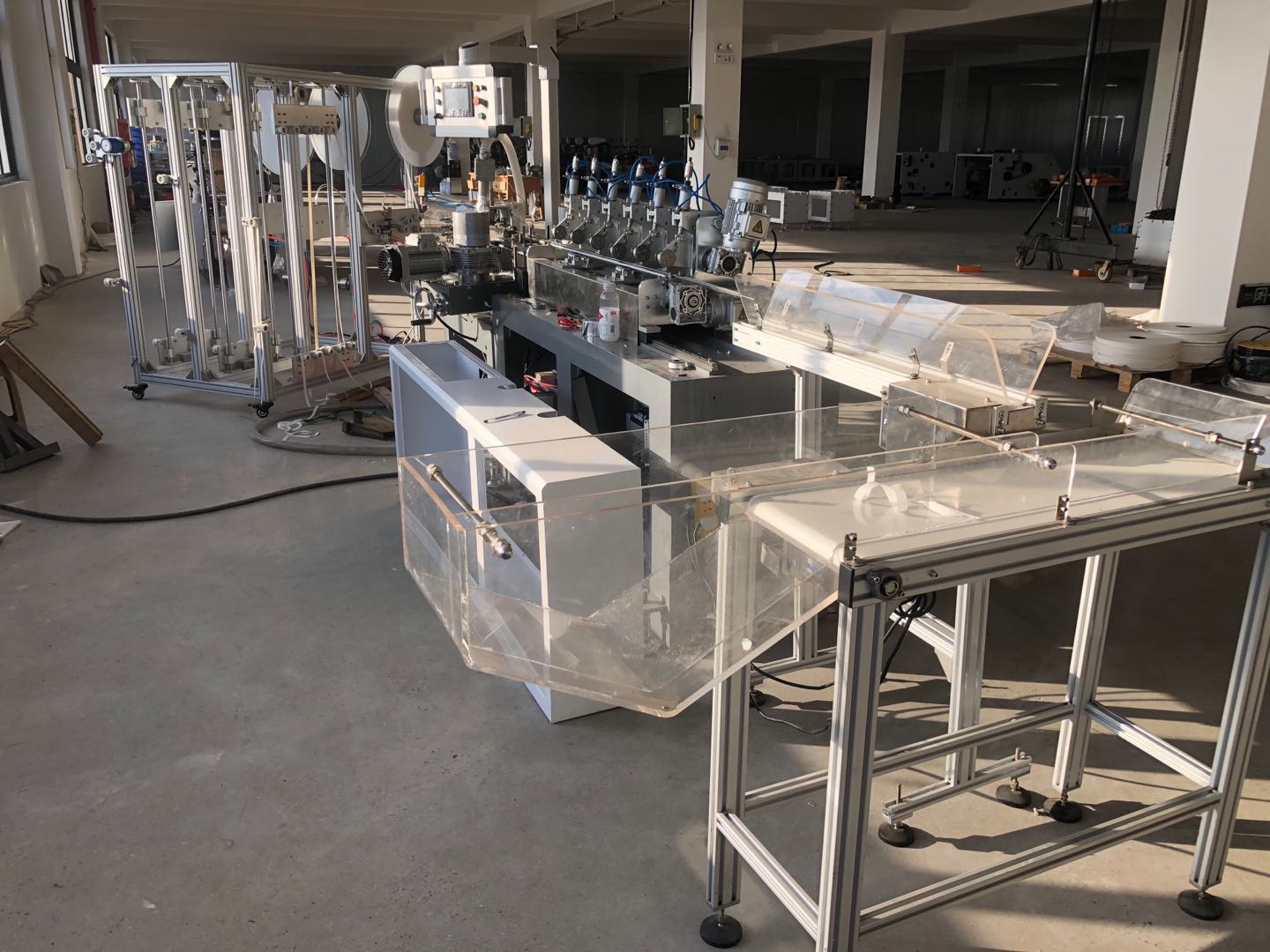

Automatic Environmental Paper Drinking Straw Making Machine



Specifications:

Suitable for small diameter (4-12 mm) paper tube production, such as paper straw, pen tube.

1. Machine adopts PLC control, all data can be display in the touch screen.

2. Numerical control servo cutter device, high precision cutting.

3. Automatically cut, automatically fall pipe, automatically change speed and revert.

4. Round knife cutting, incision more smooth, performance more stable.

5. With online multi-cut blades, no need secondary cutting, save labor and time.

6. With two units heating system design instead of gluing system,environmental friendly

7.With waste-playing function,and more working stable,and automatic changing material

8.The final product by this machine can put aside with long time and without going mouldy,and help customers save dryer

9. Machine adopts Flange for fix the mandrel.

10.Machine supply of lubricant automatically.

Main Technical Parameters:

Number of roller

2-4 layer

Tube diameter

4-12mm

Tube wall-thickness

0.3-1 mm

Cutting Length

100-1400mm

Winding head

2

Power

5.5kw

Cutter

7 sets pneumatic driving by servo control

Operator

1-2 person

Winding speed

0-45 m/min

Speed control

Frequency

Working Air Pressure

0.6Mpa

Power Supply

380V/3Phase/50Hz

Measurement

5600*1600*1750mm

Working Space

11000mm * 6000mm*2000mm

Weight

1500kgs
