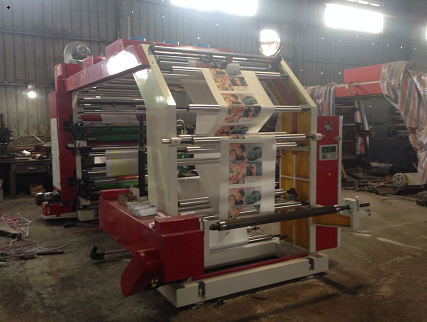

GYT4colors Paper Type Flexo Printing Machine

Time：2021/03/13

Suitable for:Paper,non-woven fabric,film with jumbo material

With hydraulic pressure loading&unloading sytem

GYT series 4colors paper flexographic printing machine

Main Parameter:

Model	GYT4-600mm	GYT4-800mm	GYT4-1000mm	GYT4-1200mm
Printing colors	4colors(ps:4+0,3+1,2+2 printing)
Printing length	7.5"-40"(also according to clients' requirement)
Plate lifting system	Hydraulic pressure control
Machine speed	100m/min
Printing speed	80m/min
Anilox roller	Ceramic anilox rollers(50-1000LPI according to printing job)
Registration precision		Longitude&transerse±0.20MM
Unwinding&winding diameter		1000mm(according to clients'requirement)
Main motor	2.2kw	2.2kw	3.0kw	3.0kw
Unwinder motor	1.1kw	1.1kw	1.5kw	1.5kw
Winder motor	1.5kw	1.5kw	2.2kw	2.2kw
Heating power	6kw	8kw	10kw	12kw
Heating blower	1.5kw	1.1kw*2	1.1kw*2	1.5kw*2
Centrifugal blower	0.37kw	0.37kw	0.55kw	0.55kw
Inking motor	0.37kw	0.37kw	0.37kw	0.37kw
Main inveter	Taiwan Delta
Bearing	NSK
Unilateral bearing	ASNU
Weight	4000kgs	4200kgs	4500kgs	4800kgs
Total power	12kw	15kw	19kw	21kw
Dimension(LWH)	4.01.82.9M	4.02.02.9M	4.02.22.9M	4.02.42.9M
