6Colors Non-Woven Favric Flexo Printing Machine

Time：2021/03/13

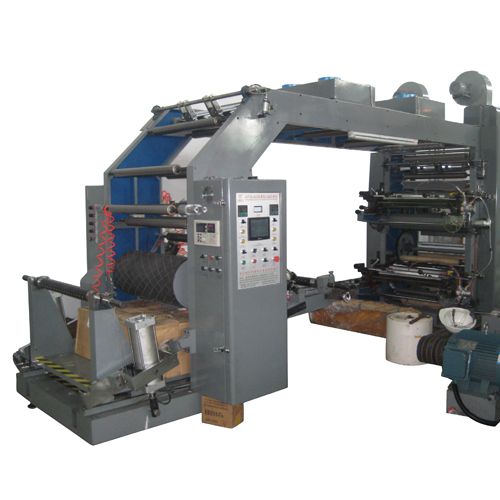

GYT Series 6Colors High Speed Flexo Printing Machine for Plastic Bag

Main Parameter:

Model	GYT6-600mm	GYT6-800mm	GYT6-1000mm	GYT6-1200mm
Printing colors	6colors(ps:6+1,5+1,4+2,3+3 printing)
Printing length	7.5"-40"(also according to clients' requirement)
Plate lifting system	Hydraulic pressure control
Machine speed	100m/min
Printing speed	80m/min
Anilox roller	Ceramic anilox rollers(50-1000LPI according to printing job)
Registration precision		Longitude&transerse±0.20MM
Unwinding&winding diameter		600mm(according to clients'requirement)
Main motor	3.7kw	3.7kw	5.5kw	5.5kw
Unwinder powder brake	5kg	5kg	10kg	10kg
Winder motor	1.5kw	1.5kw	2.2kw	2.2kw
Heating power	20kw	22kw	24kw	26kw
Heating blower	1.5kw*2	1.1kw*4	1.1kw*4	1.1kw*4
Centrifugal blower	0.37kw	0.37kw	0.55kw	0.55kw
Inking motor	0.37kw	0.37kw	0.37kw	0.37kw
Main inveter	Taiwan Delta
Bearing	NSK
Unilateral bearing	NSK
Weight	5500kgs	5750kgs	6000kgs	6250kgs
Total power	26kw	28kw	30kw	32kw
Dimension(LWH)	4.81.83.2M	4.82.03.2M	4.82.23.2M	4.82.43.2M
