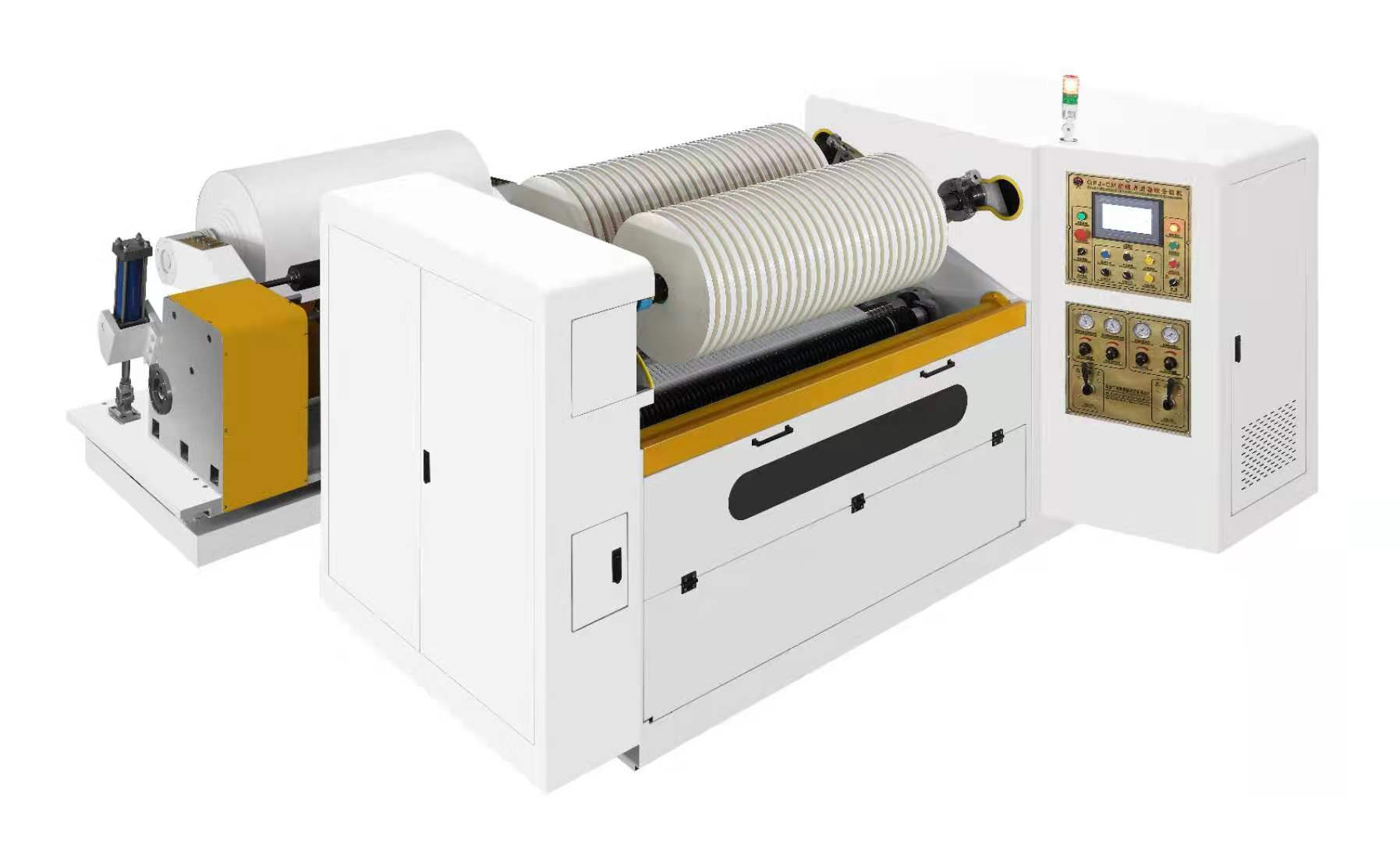

High Speed Computer Control Slitting&rewinding Machine for paper straw
USE:
This machine is suitable for cutting 20g-200g materials for various printing and packaging papers.
Characteristic:
1. The machine adopts computer control, photoelectric tracking and correction system, and the winding tension is controlled by the variable frequency vector motor through the PLC touch screen to achieve automatic tension control.
2. Unwinding tension is controlled by magnetic powder brake and automatic tension. 3. The rewinding shaft adopts an inflatable shaft, with automatic air pressure, so that the rewinding shaft can automatically rise and fall.
4.The inverter controls the working speed of the whole machine and is equipped with an automatic meter counting device.
5.It has the advantages of smooth incision, neat winding end surface, and easy follow-up processing.
Main Technical Parameter
Model | WFQ-Z800 |
Max. material width | 800mm |
Slitting width | 10-650mm |
Thickness of material | 0012-0.2mm |
Max. mechanical speed | 5-300m/min |
Total power | 12KW |
Weight of machine | 2100KG |
Overall dimension(L×W×H) | 3300×1800×1600mm |
Winding motor | 3kw*2 |
Main motor | 4kw |
Max.unwind diameter | 1200mm |
Max. rewind diameter | 650mm |
